RAD: ETX-2
Carrier Ethernet Demarcation
When looking for next-generation IP and Carrier Ethernet Networking Interface Device (NID), also known as Network Termination Unit (NTU), the RAD ETX-2 line of next-generation offers advanced demarcation for SLA-based business services, wholesale services and mobile backhaul.
The ETX-2 line provides 1Gb, 10Gb, 100Gb Ethernet Demarcation for both indoor and outdoor NID and NTU options.
MEF CE 3.0 Certified with Traffic Management and Monitoring per EVC/EVC.CoS
The ETX-2 is MEF Carrier Ethernet 3.0-certified for E-Line, E-LAN, E-Tree, and E-Access services, delivering TDM pseudowire over packet networks and supporting high-capacity service provisioning per EVC/EVC. CoS, flexible classification and H-QoS traffic management, ETX-2 offers accurate and scalable service testing as an RFC2544 test device and performance monitoring. The ETX-2 is supported by RADview management and enables a variety of protection mechanisms. It also offers NEBS-compliant and environmentally hardened enclosure options.
Key Take Aways
and aggregation for SLA-based Carrier Ethernet and TDM over packet
Service Activation Testing, Y.1564 and Y.1731
synchronization for LTE/LTE-A backhaul
service delivery over any access infrastructure

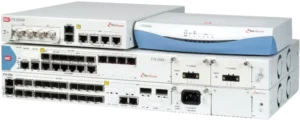

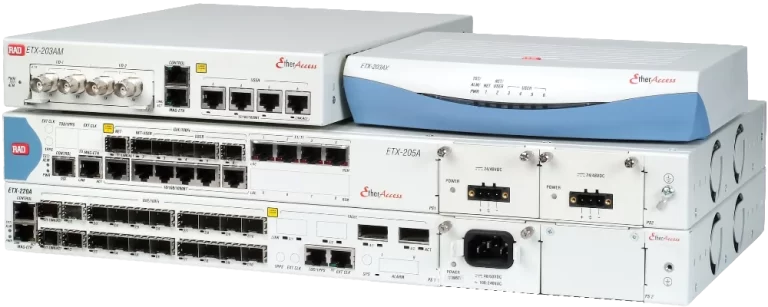

ETX-2
Universal Carrier Ethernet Demarcation Device

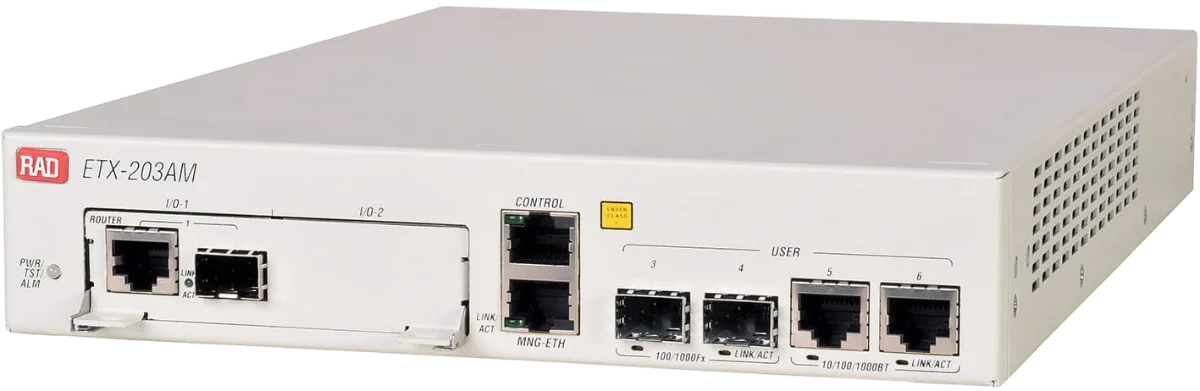

As a modular demarcation device, the ETX-203AM enables operators to deliver Carrier Ethernet services and L2 VPNs over any network connection.
- Four FE/GbE user ports
- Modular network interfaces: FE/GbE (combo), E1/T1, T3, VDSL, or SHDSL

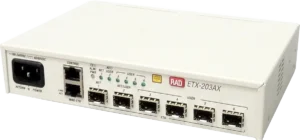

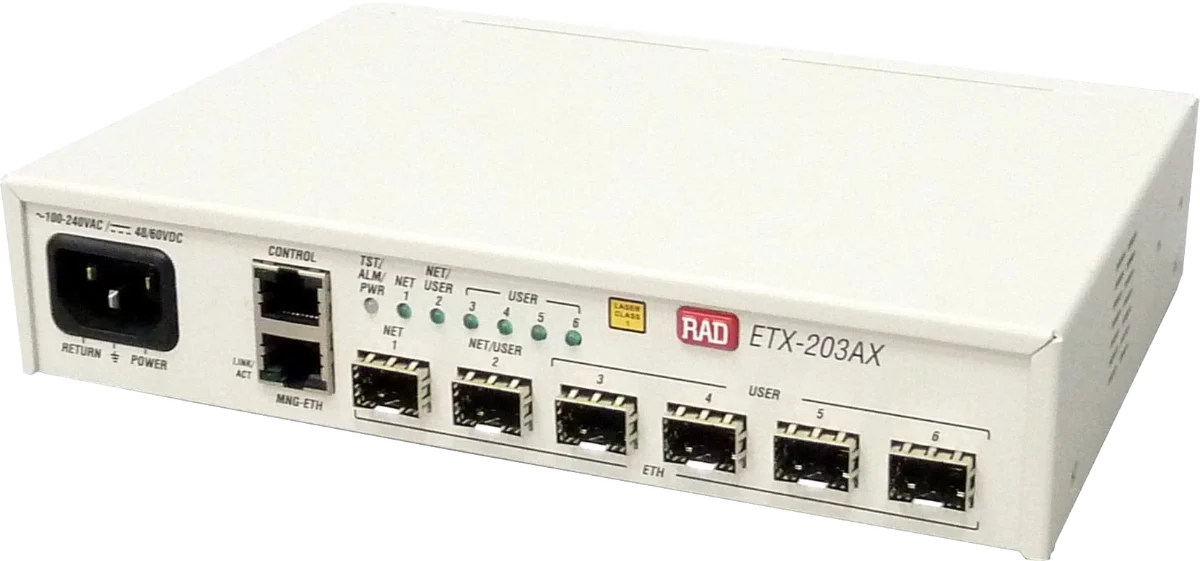

ETX-203AX is ideal for carriers, service providers, and wholesale operators requiring advanced Ethernet functionality at customer premises and multi-tenant units (MTUs).
- Four and six FE/GbE ports; flexible selection of SFP and copper interfaces
- Optional E1/T1 PDH user port to be encapsulated and transported over Ethernet
- Optional SHDSL network port for cost-effective Ethernet over SHDSL service
- Wide-range AC/DC power supply

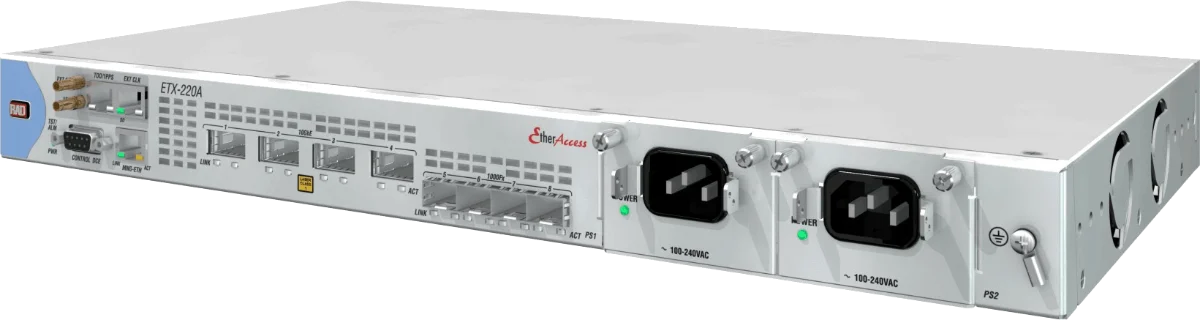

10G Carrier Ethernet Demarcation/Aggregation Device
The ETX-220A combines intelligent demarcation and aggregation capabilities to deliver SLA-based Carrier Ethernet services for enterprise and carrier-to-carrier E-Access applications.
- Up to four 10-GbE ports and up to 20 x 1-GbE ports in various combinations
- Flexible synchronisation offering Sync-E, IEEE 1588v2 slave, BC and TC for frequency and phase synchronisation in mobile networks
